Upper Cabinet Plans & Parts List
Upper Cabinet Plans & Parts List
Couldn't load pickup availability

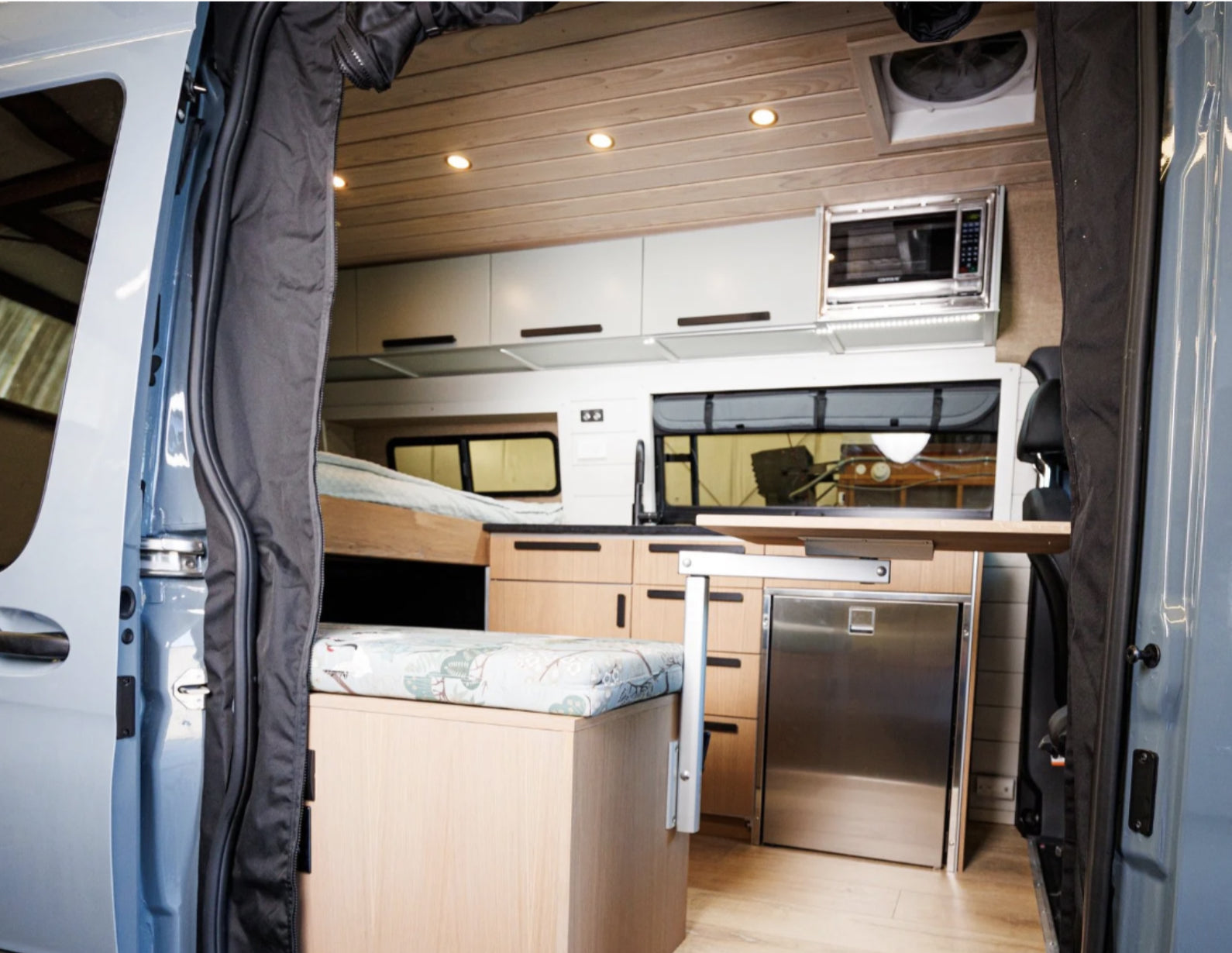

Plans for Upper Cabinet for Mercedes Sprinter (Approx. 90” long x 12” deep x 12” tall).
This upper cabinet is designed to work in conjunction with our Microwave cabinet on the driver side of your Sprinter 144 WB van, but will also work as a standalone cabinet or on the passenger side of a Sprinter 170 WB.
Need a different length of cabinet? You can easily adjust the length and openings by ordering shorter bars. The height and depth of cabinets do not change.
This is a digital download (PDF). Download materials include detailed drawings and assembly instructions plus a parts list for ordering extrusions (pre-cut to length) and all required hardware.
Our upper cabinet plans do not fit Transit or Promaster vans.
All sales are final. No refunds on digital products.
