Kitchen Galley Plans & Parts List

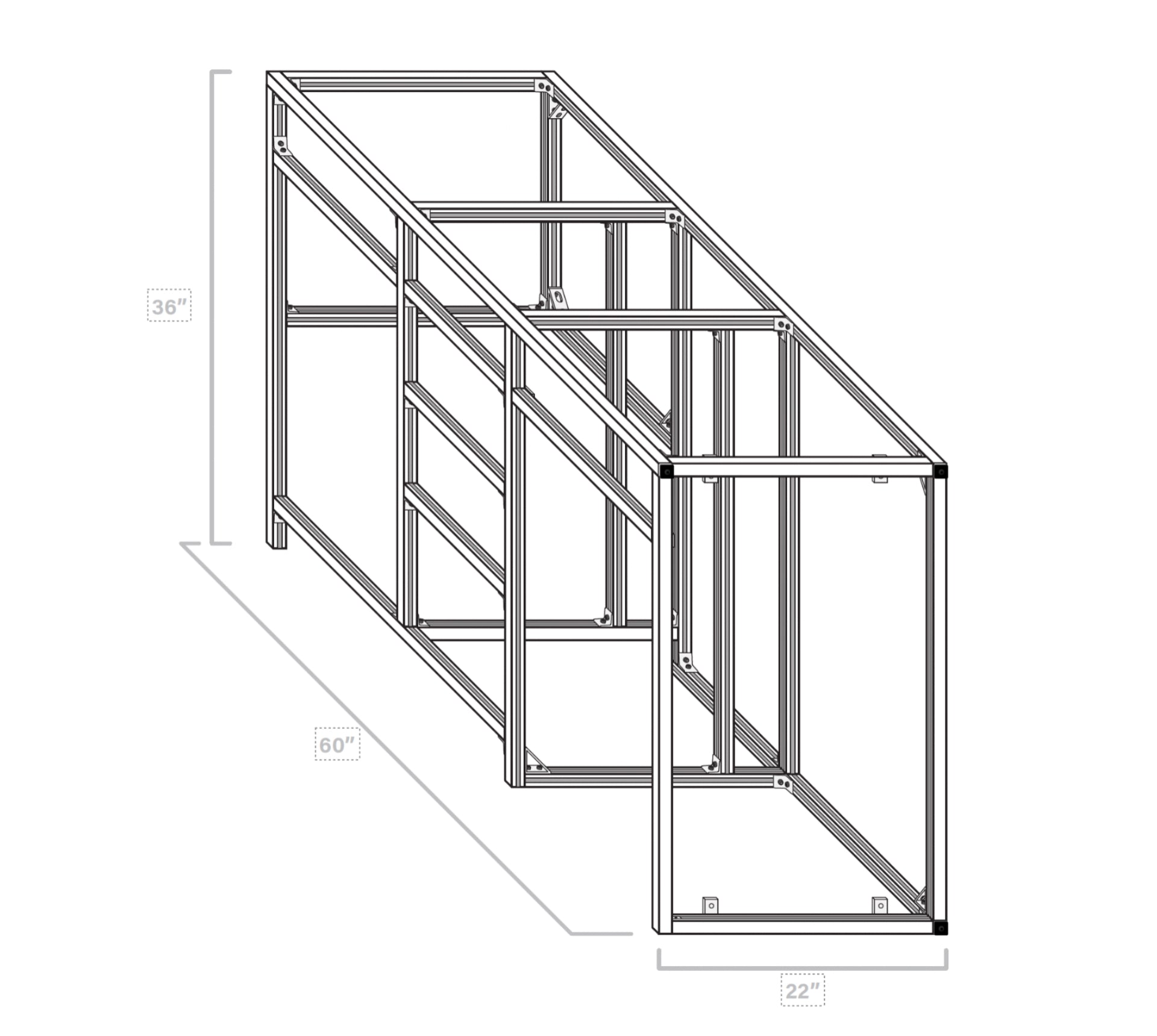

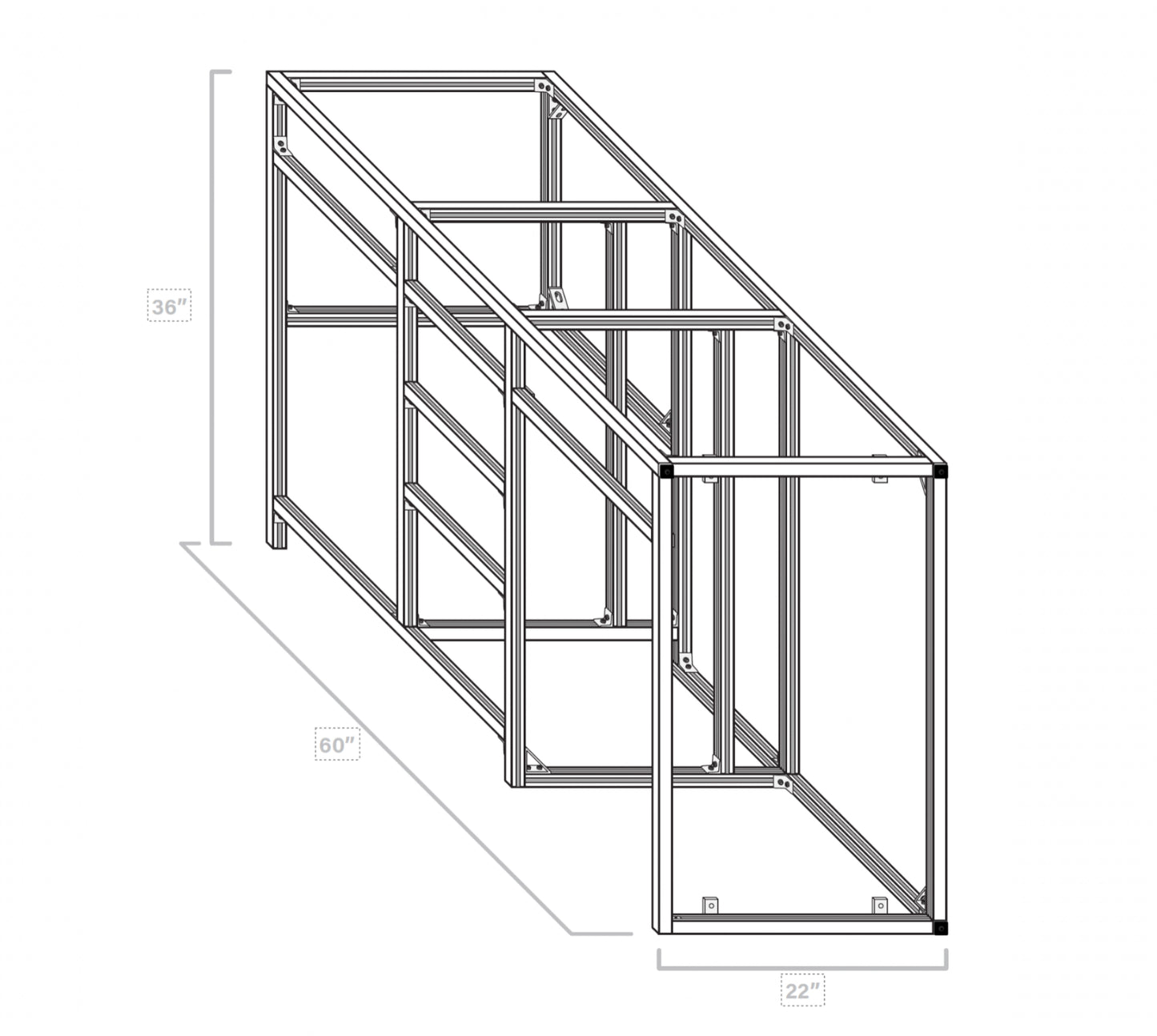

Plans for kitchen galley (60” long x 22” deep x 36” tall).

Works on Sprinter and Transit vans. We have not tested it on Promaster vans.

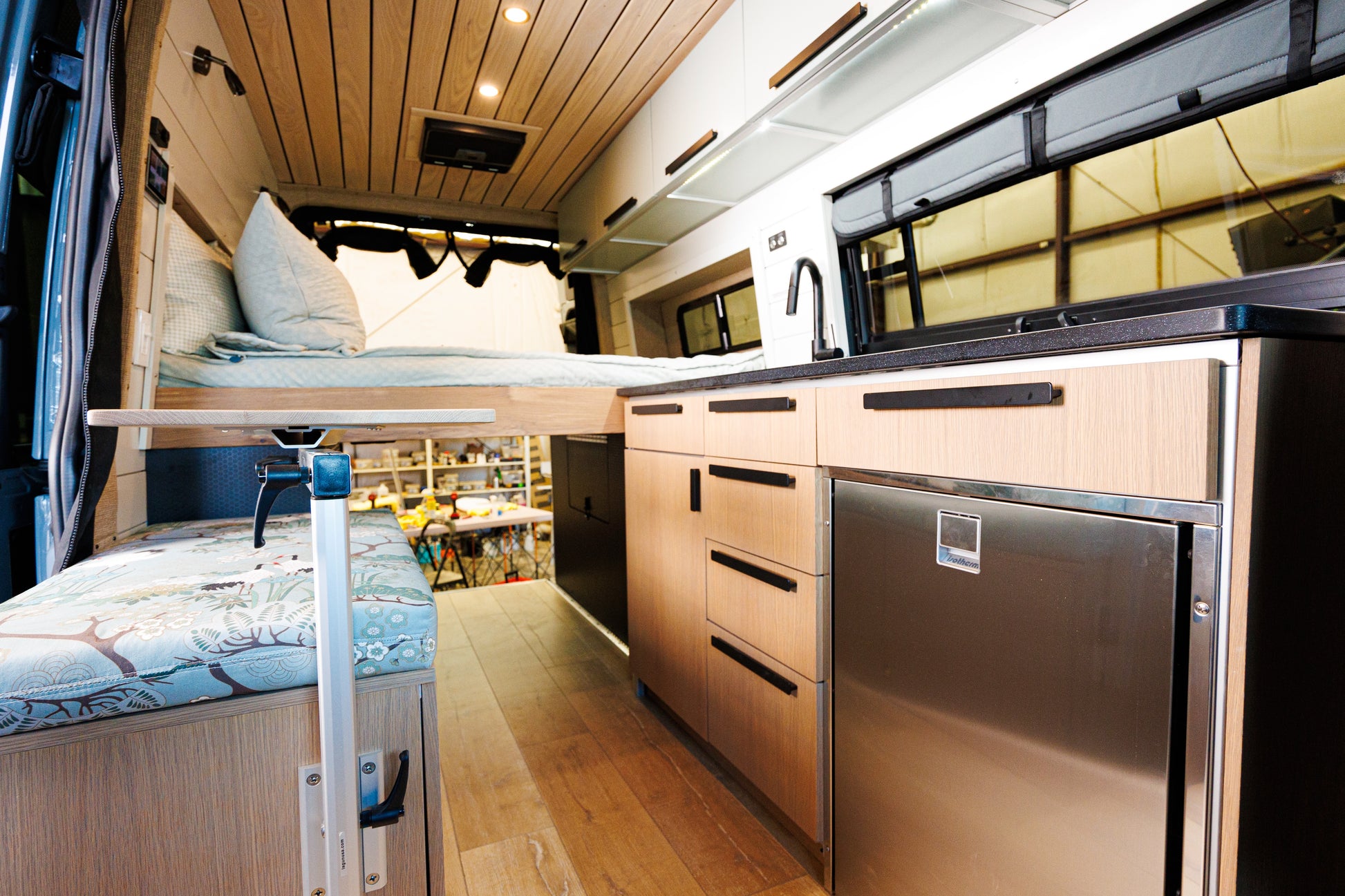

This galley is designed to go on the driver side of your van. Fits an Isotherm CR130 refrigerator (can be modified to accommodate other refrigerators).

Bank of 4 drawers, plus a drawer above refrigerator.

This is a digital download (PDF). Download materials include detailed drawings and assembly instructions plus a parts list for ordering extrusions (pre-cut to length) and all required hardware.

All sales are final. No refunds on digital products.
